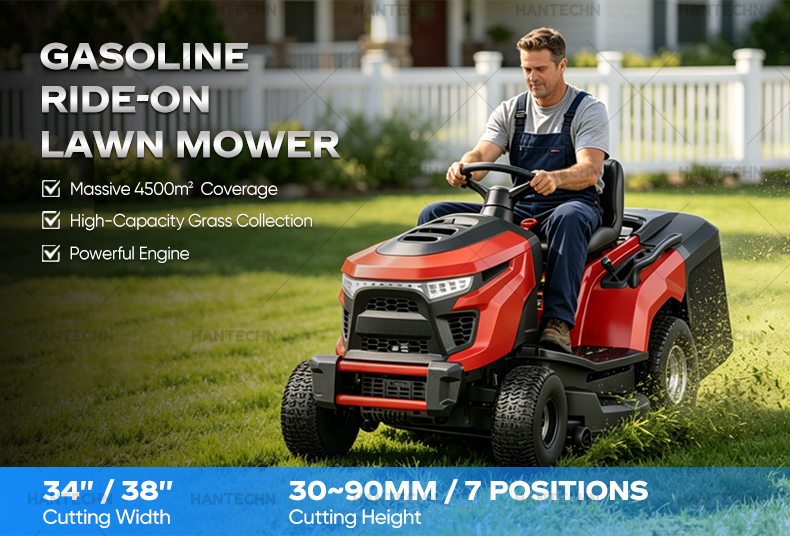

Hantechn@Commercial Zero Turn Riding Mower

Model：160014

Displacement：352cc/452cc/586cc

Rotation speed ：2800±100rpm

Cutting width ：34″/38″

Fuel tank capacity ：1.6Gal/6L

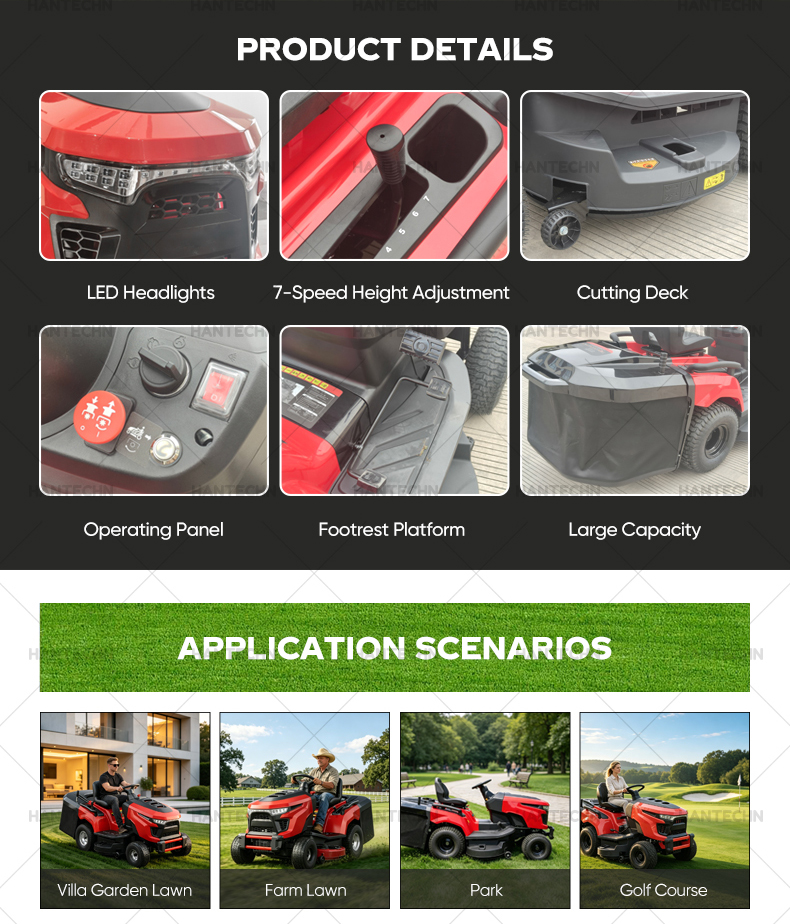

Product Detail


Displacement / Number of cylinders	352cc / 1	452 cc / 1	452 cc / 1	586 cc / 2
Engine net power	9.7HP(7.2kW)	12.4HP(9.2kW)	12.4HP(9.2kW)	16.8HP(12.5kW)
Rotation speed	2800±100rpm	2800±100rpm	2800±100rpm	2800±100rpm
Fuel tank capacity	1.6Gal/6L	1.6Gal/6L	1.6Gal/6L	1.6Gal/6L
Cutting method	Rear collection	Rear collection	Rear collection	Rear collection

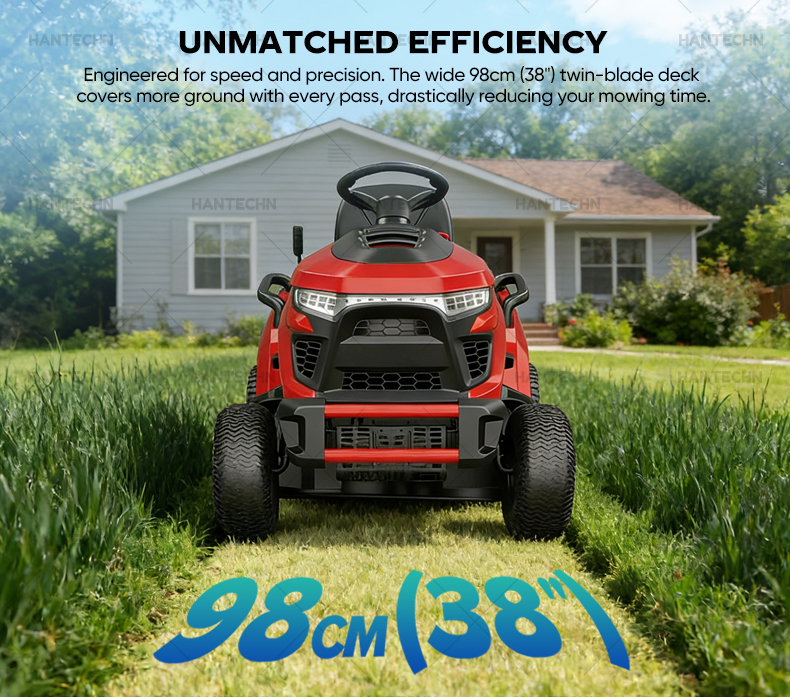

Cutting width	34''(86cm )	34''(86cm )	38''(97cm)	38''(97cm)
Cutting height range	30-90mm /7positions	30-90mm /7positions	30-90mm /7positions	30-90mm /7positions
Blades	Twin	Twin	Twin	Twin
Blade engagement type	Electric	Electric	Electric	Electric
Transmission type /Method	Lever-CVT (continuously variable transmission)	Option①Lever-CVT (continuously variable transmission) Option②Hydrostatic （LONCIN）/ Pedal-operated	Option①Lever-CVT (continuously variable transmission) Option②Hydrostatic （LONCIN）/ Pedal-operated	Option①Lever-CVT (continuously variable transmission) Option②Hydrostatic （LONCIN）/ Pedal-operated
Number of gears	Automatic Transmission	Automatic Transmission	Automatic Transmission	Automatic Transmission
Collector capacity	250 L	250 L	250 L	250 L

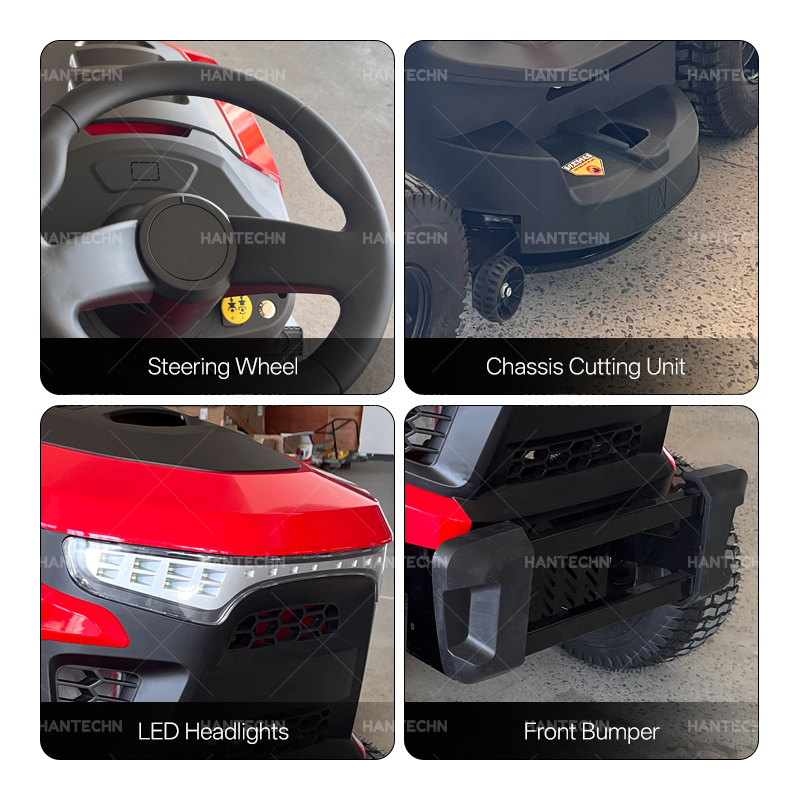

Headlights	Yes with LED	Yes with LED	Yes with LED	Yes with LED
Turning radius	18"(46cm)	18"(46cm)	18"(46cm)	18"(46cm)
Front wheel size	15"x6-6	15"x6-6	15"x6-6	15"x6-6
Rear wheel size	18"x8.5-8	18"x8.5-8	18"x8.5-8	18"x8.5-8
Weight gross	T.B.A	T.B.A	T.B.A	T.B.A
Working area	up to 3500 m²	up to 3500 m²	up to 4500 m²	up to 4500 m²
Certification	CE	CE	CE	CE
Loading qty/pcs(20GP/40GP/40HQ)	12/28/42	12/28/42	12/28/42	12/28/42
