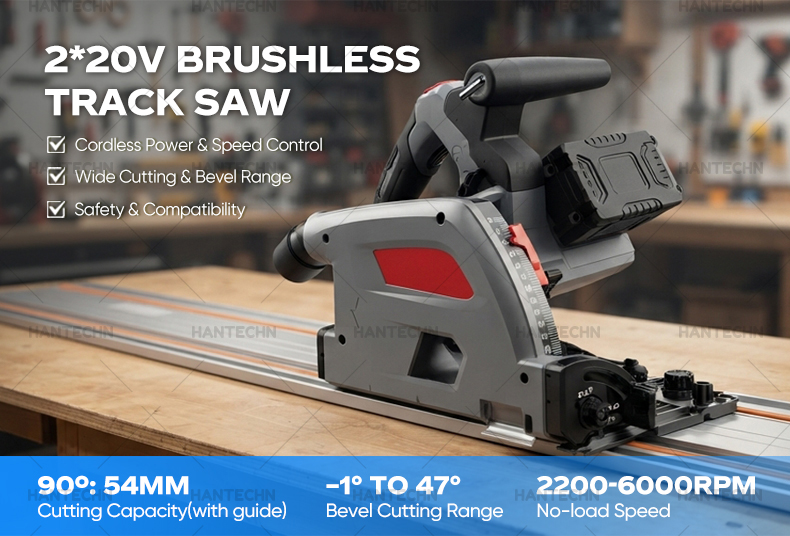

Hantechn@2x20V DC 165mm Brushless Plunge Track Saw for Wood Cutting
Basic Info
Voltage: 2X20V

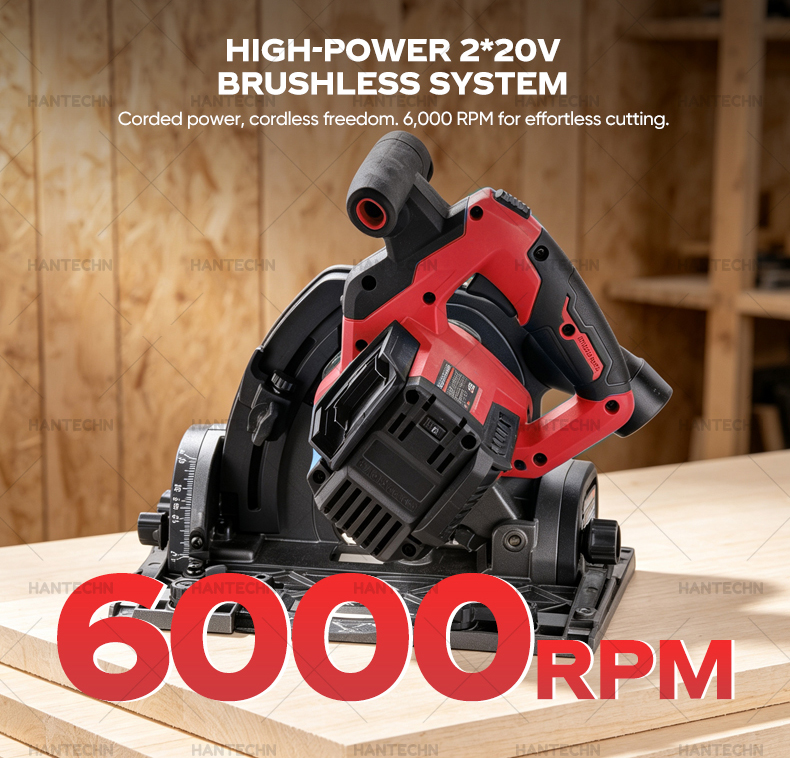

No load speed (Brushless) :2200-6000rpm
Blade size: 165mm

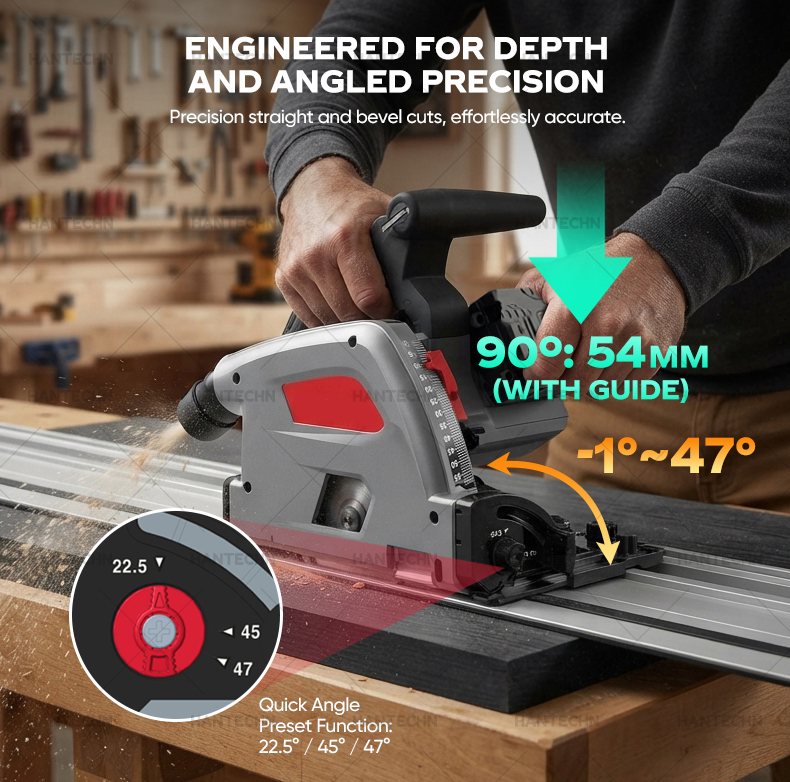

Cutting capacity90º: 54mm with guide
90º: 59mm without guide
cutting angle -1º-47º:

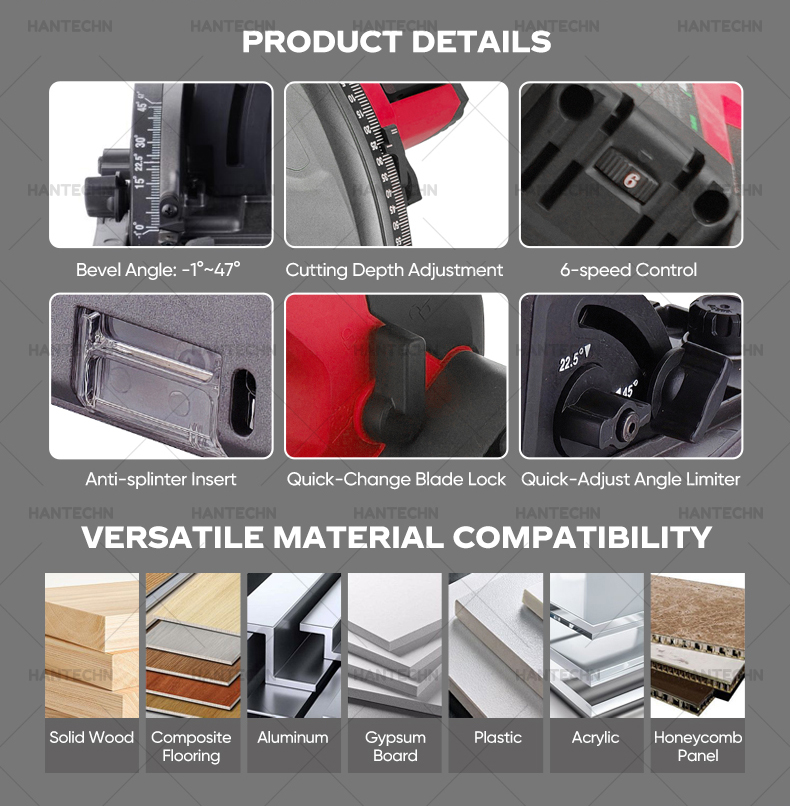

Feature
Alu die base plate
Alu die upper guard
with brake function
constant speed
speed adjustment
Anti-Explosion edge function
Anti kickback function
slight （3mm） cutting function
quick angel setting of 22.5°/45°/47°
fit both FESTOOL OR MAKITA Bar（LANGSHI patent）
motor size ：6025
1pc 165*φ20*48T
1pc hex key
1pc dust extraction

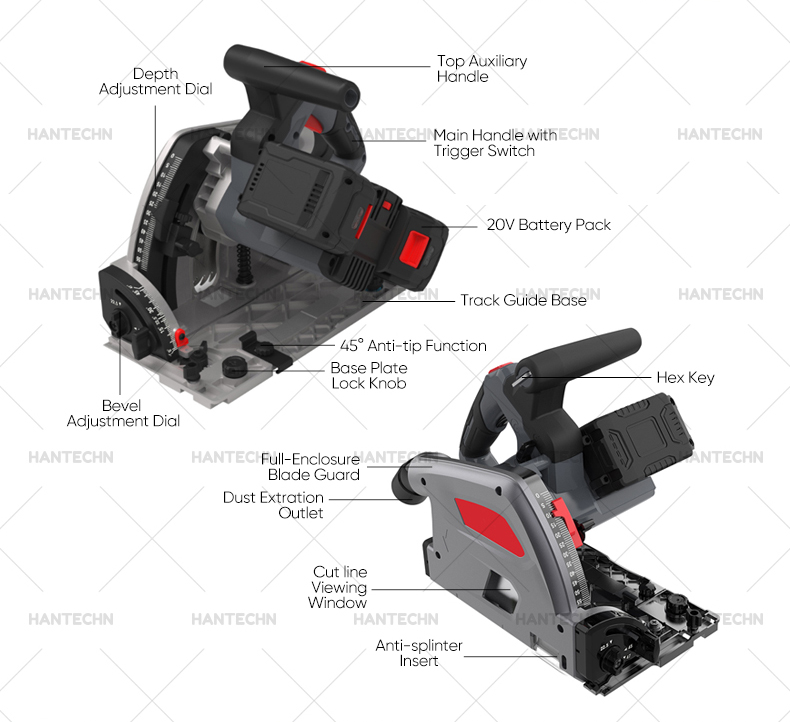

Product Components:
- Top Auxiliary Handle
- Main Handle with Irigger Switch
- 20V Battery Pack
- Track Guide Base
- 45°Anti-tip Function
- Base Plate Lock Knob
- Bevel Adiustment Dial
- Depth Adiustment Dia
Q1: Does this saw fit Festool and Makita guide rails?
Yes. Our patented rail system is compatible with both Festool and Makita guide rails, giving you maximum jobsite flexibility without buying new tracks.
Q2: What is the maximum cutting depth?
59mm at 90° without a guide rail, and 54mm with the guide rail installed.
Q3: How does the anti-explosion feature work?
It uses a zero-clearance splinter guard that supports the wood fibers during cutting, eliminating tear-out and delivering factory-finish edges on veneers and laminates.
Q4: Does the saw have safety features?
Yes. It includes an electronic brake for instant blade stop and an anti-kickback mechanism to prevent sudden backward movement if the blade binds.
Q5: Can I change the blade quickly?
Yes. The saw features a quick-change blade lock system (spindle lock) for fast, tool-free blade swaps, minimizing downtime on the jobsite.
Q6: What is the 3mm slight cutting function used for?
It allows you to pre-score laminate or veneer surfaces at a shallow depth before the full cut, ensuring the cleanest, splinter-free edge possible.
